- High quality analog video: 1/3" Sony 1.3 Megapixel CMOS Sensor, Color DSP, Horizontal high resolution 1000 TV Lines.

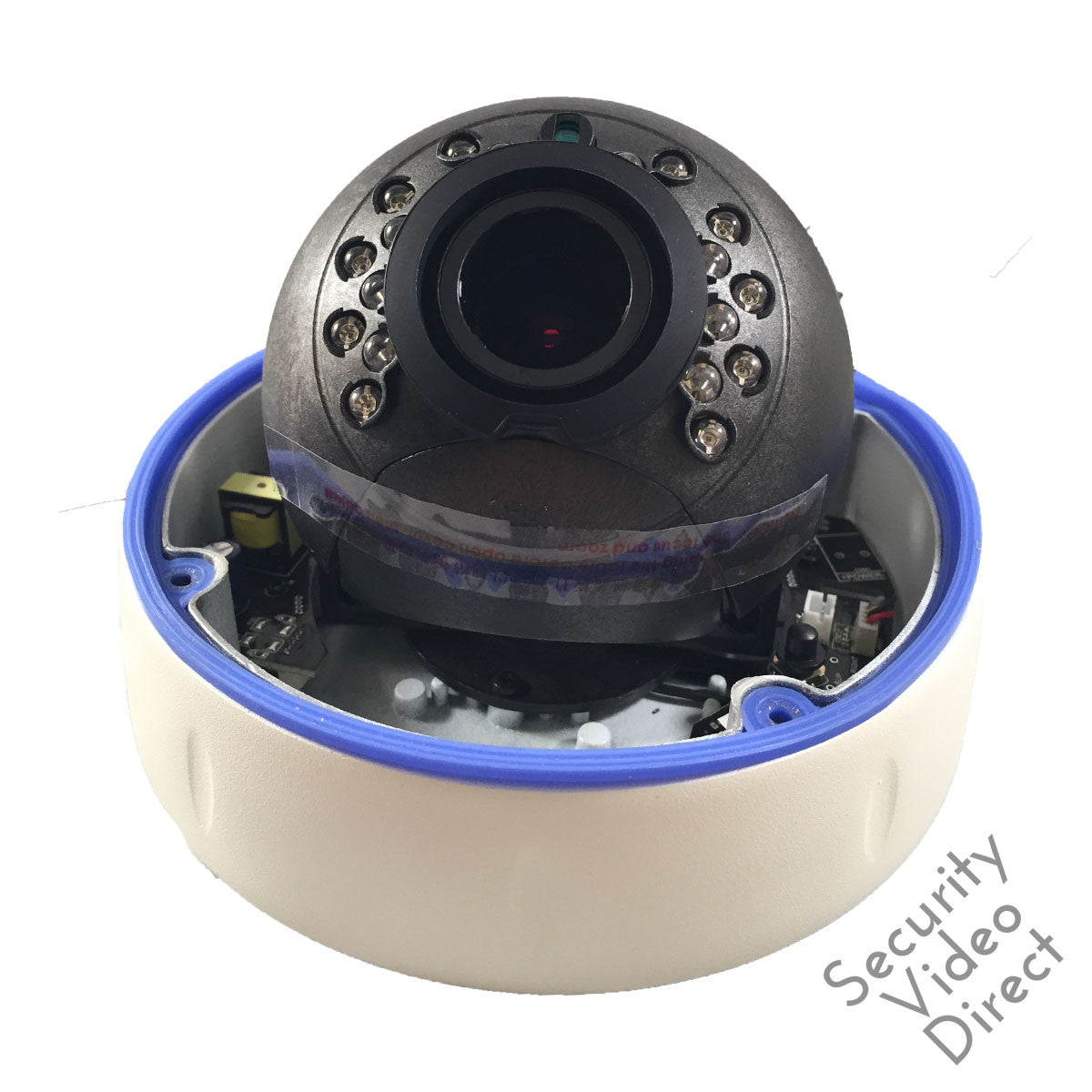

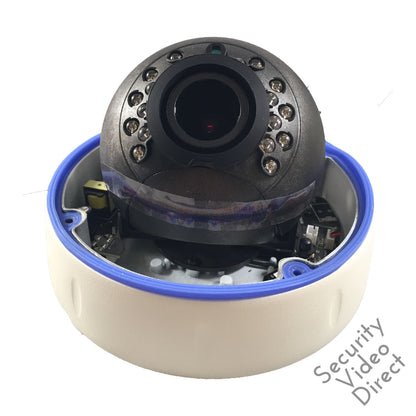

- A larger viewing area: 2.8 -12mm varifocal lens with wide view angle.

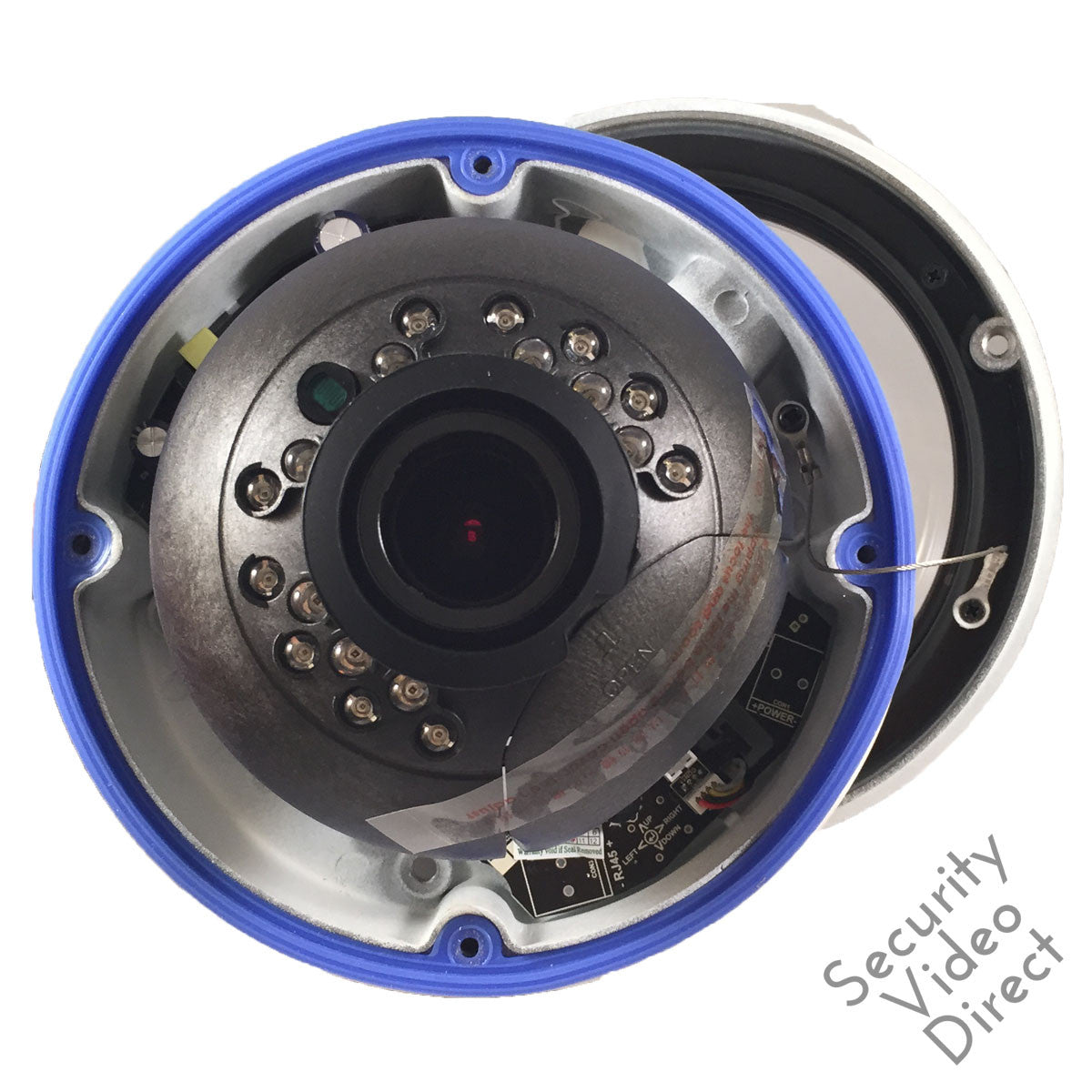

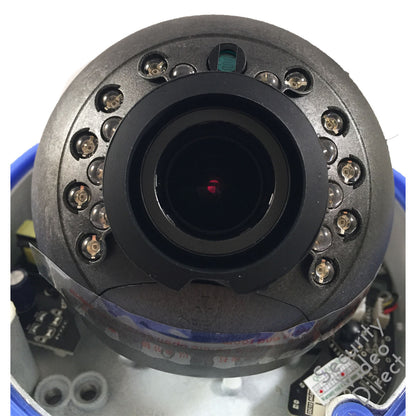

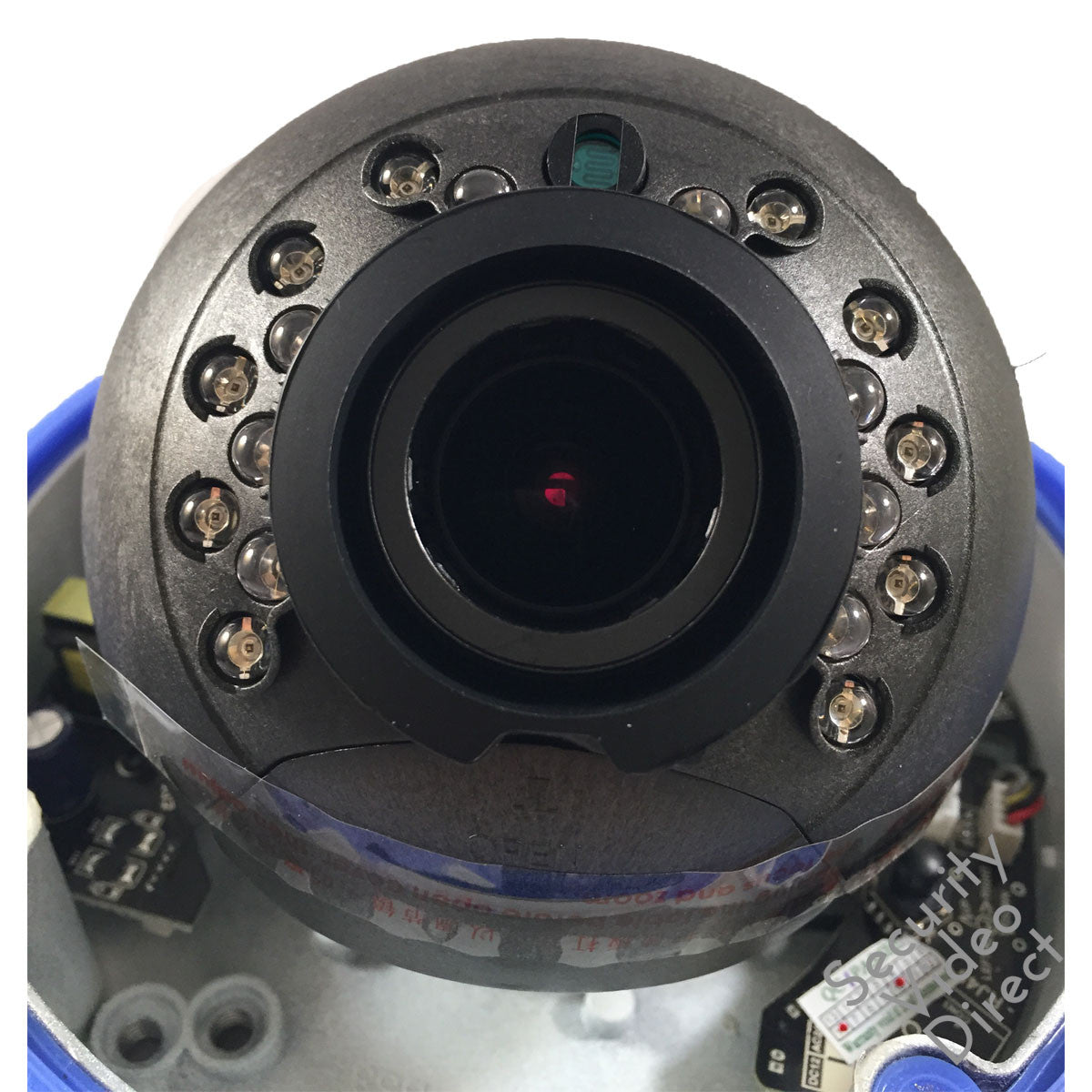

- Great night vision: 18PCS Infrared LED, smart IR and WDR allows an imaging system to correct for the intense back light.
- IP 66, Weatherproof, Vandalproof.
Discription

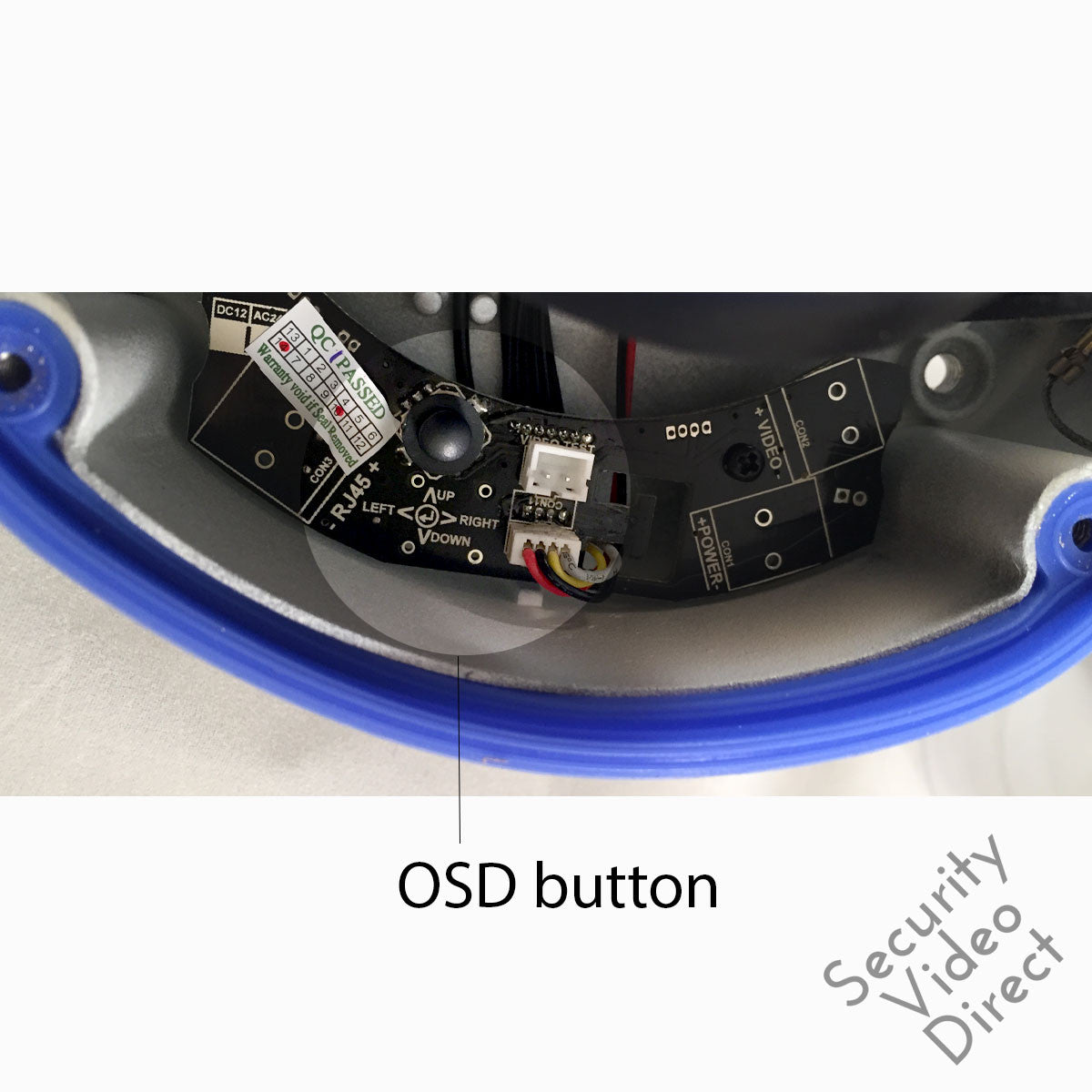

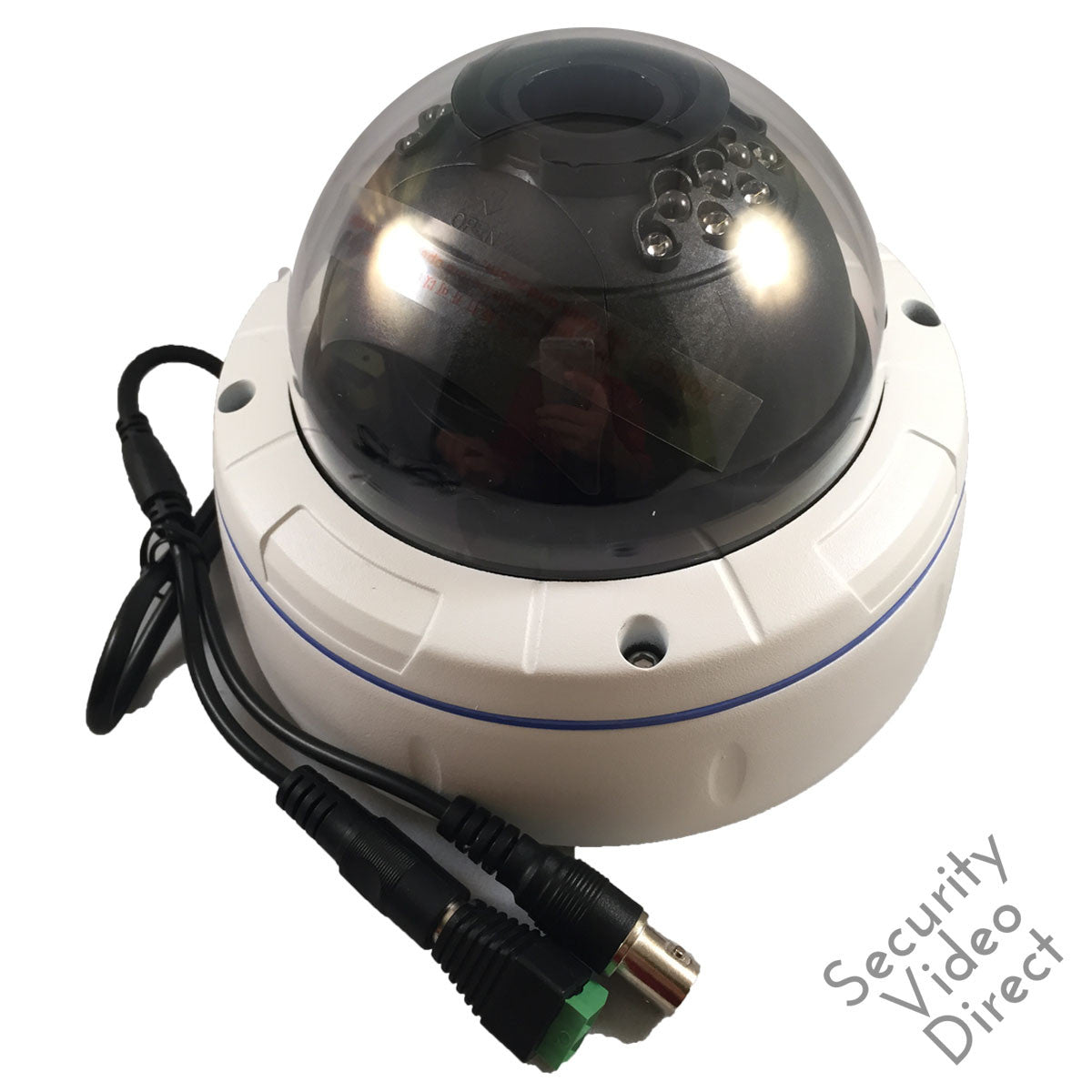

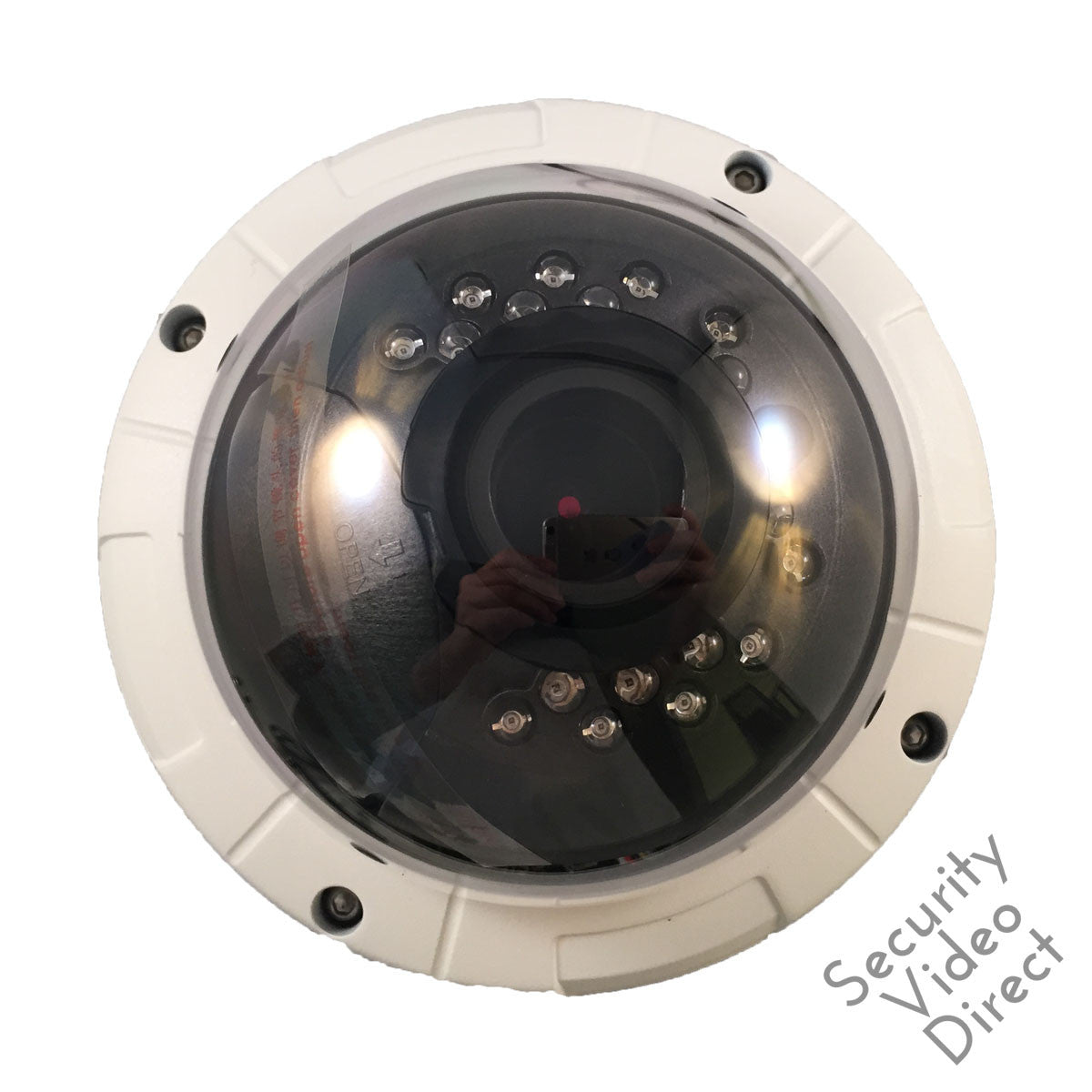

SV-V1028DR uses advanced imaging technology from 1/3'' SONY 1.3 Megapixel CMOS sensor to capture resolution as high as 720P at 60 frames per second and it outputs analog signal through CVBS/BNC cable. It features 2D/3D adaptive noise reduction. An external button accesses cameras's OSD menu to set Motion Detection, Privacy Zone, Digital Zoom, Digital Picture Correction, Shutter, White Balance, and other imaging features. Additionally, its varifocal lens and wide angle view allow for flexible placement. With 18 units of IR LEDs it can see at night for up to 80 feet. IP 66 weatherproof.
Specification
Model: SD-V1028DR
Image Sensor: 1/3'' 1.4 Megapixel CMOS Sensor
Effective Pixels: 1305(H)x1049(V)
Signal System: NTSC or PAL
Resolution: 720P
Mini Illumination: 0.01 Lux / F1.2 (with IR on)
Lens: 2.8 - 12mm Manual Zoom Lens
Gain Control: Auto
White Balance: Auto
S/N Ratio: More than 50 dB
Auto Electronic Shutter: NTSC: 1/60s ~ 1/100,000sec, PAL: 1/50s~ 1/100,000sec
Video Output: Composite output 1.0Vpp at 75Ω
Gamma Correction: 0.45
IR LEDs: 18pcs IR LEDs
Infrared Lamps: Night/Day ON/OFF
Power/ current: DC12V/ 300mA
Dimensions: Ø150×107 mm
Weight: 2.4 lbs (1100g)

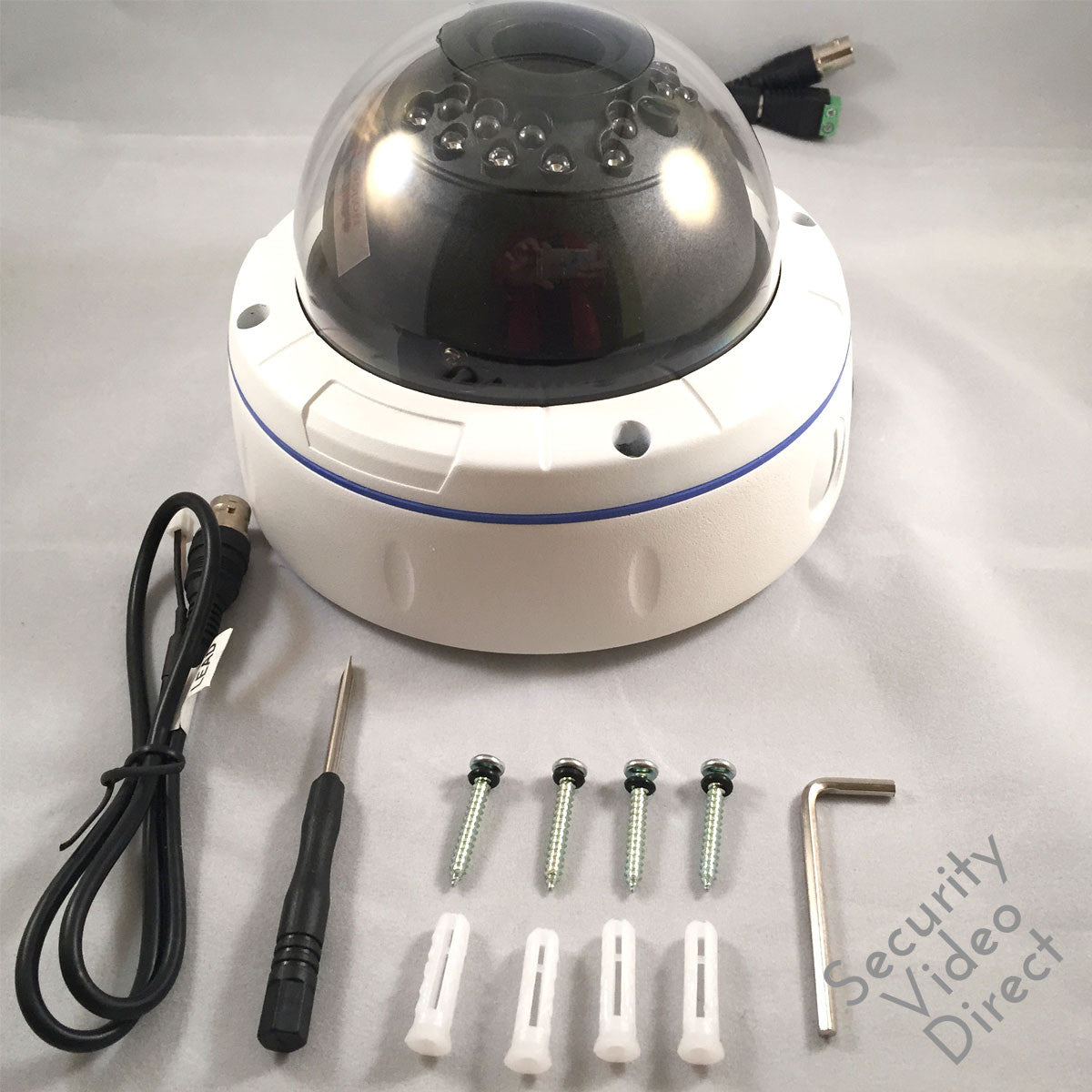

Accessories: User manuals, screw sets.
