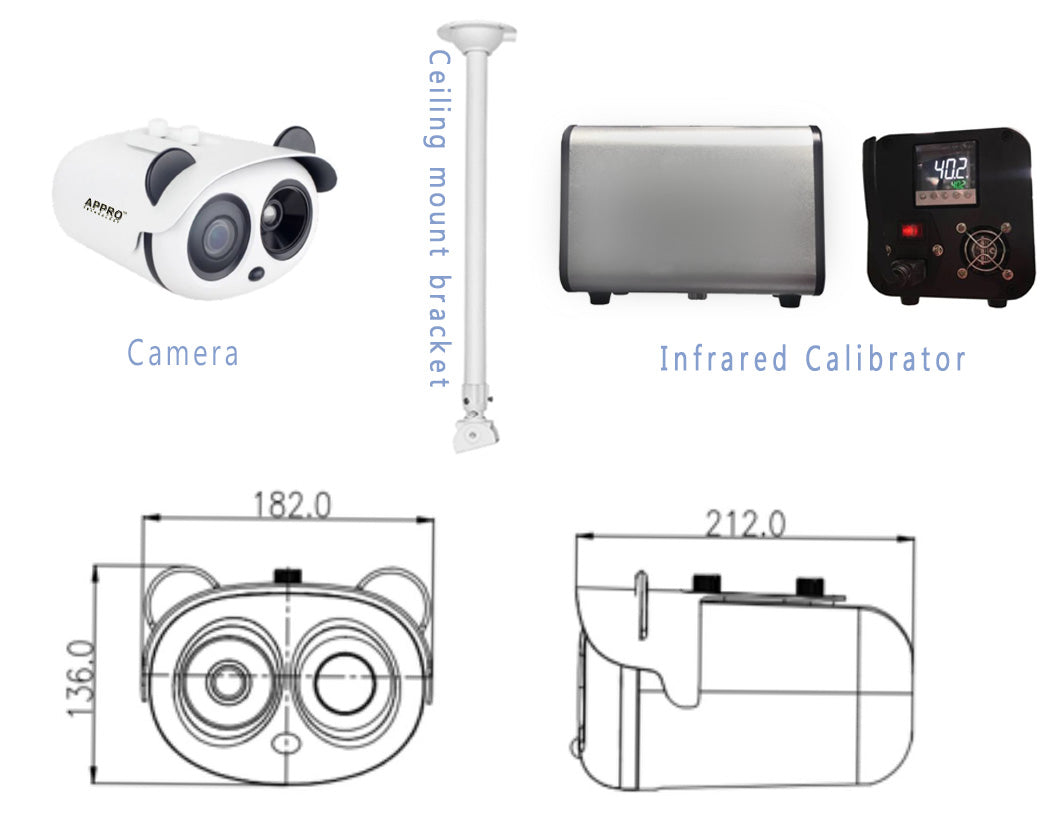

SVD Thermal Camera Temperature Detection Network Camera System Including Ceiling Mount Bracket, Infrared Calibrator
SVD Thermal Camera Temperature Detection Network Camera System Including Ceiling Mount Bracket, Infrared Calibrator
Couldn't load pickup availability
SVD-TC-200 Temperature Detection Camera
Features
- On-board temp-detection algorithm
- One IP address two channels
- Standard Image: 2 Megapixel (1920 x 1080) Resolution
Thermal Image: Effective pixels 400×300 - Sensitivity 40mK
- Thermal: 8mm Fixed lens, Visible: 2.7-12mm motorized lens
- Accuracy within 0.54°F (0.3°C)
- Body detection, up to 16 Targets
- Response Time 30ms
- 17 color control
Thermal Camera |
SVD-TC-200 |
|
Detector Type |
Uncooled IRFPA Microbolometer |
|
Effective Pixels |
400(H) ×300(V) |
|
Pixel Size |
17um |
|
Thermal Sensitivity (NETD) |
40mK @F1.0, 300K |
|
Spectral Range |
8~14um |
|
Image Setting |
Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI |
|
Color Palettes |
Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes |
Thermal Lens |
|
|
Lens Type |
Fixed |
|
Focus Control |
Manual Focus |
|
Focal Length |
8mm |
|
F No. |
F1.0 |
|
Angle of View |
H: 46°, V:35.3° |
Visible Camera |
|
|
Image Sensor |
1/1.9" Sony CMOS |
|
Effective Resolution |
1920(H)×1080(V) |
|
Shutter Speed |
1/50 ~ 1/64,000s |
|
Wide Dynamic Range |
True WDR 120dB |
|
Min. Illumination |
Color: 0.01Lux @(F1.2, AGC ON) |
|
|
B/W: 0.001Lux @(F1.2, AGC ON) |
|
S/N Ratio |
More than 55dB |
|
Focal Length |
2.7 ~ 12mm |
|
Max Aperture |
F1.6~ F2.9 |
|
Angle of View |
105°~ 32° |
|
Focus Control |
Motorized |
DISCLAIMER: SVD products are not medical devices and cannot diagnose coronavirus infection. When configured correctly, the SVD products discussed here can identify individuals showing higher than average temperature relative to a sample population. Only a licensed medical professional can determine if a “hot” individual is experiencing an abnormal medical condition.
