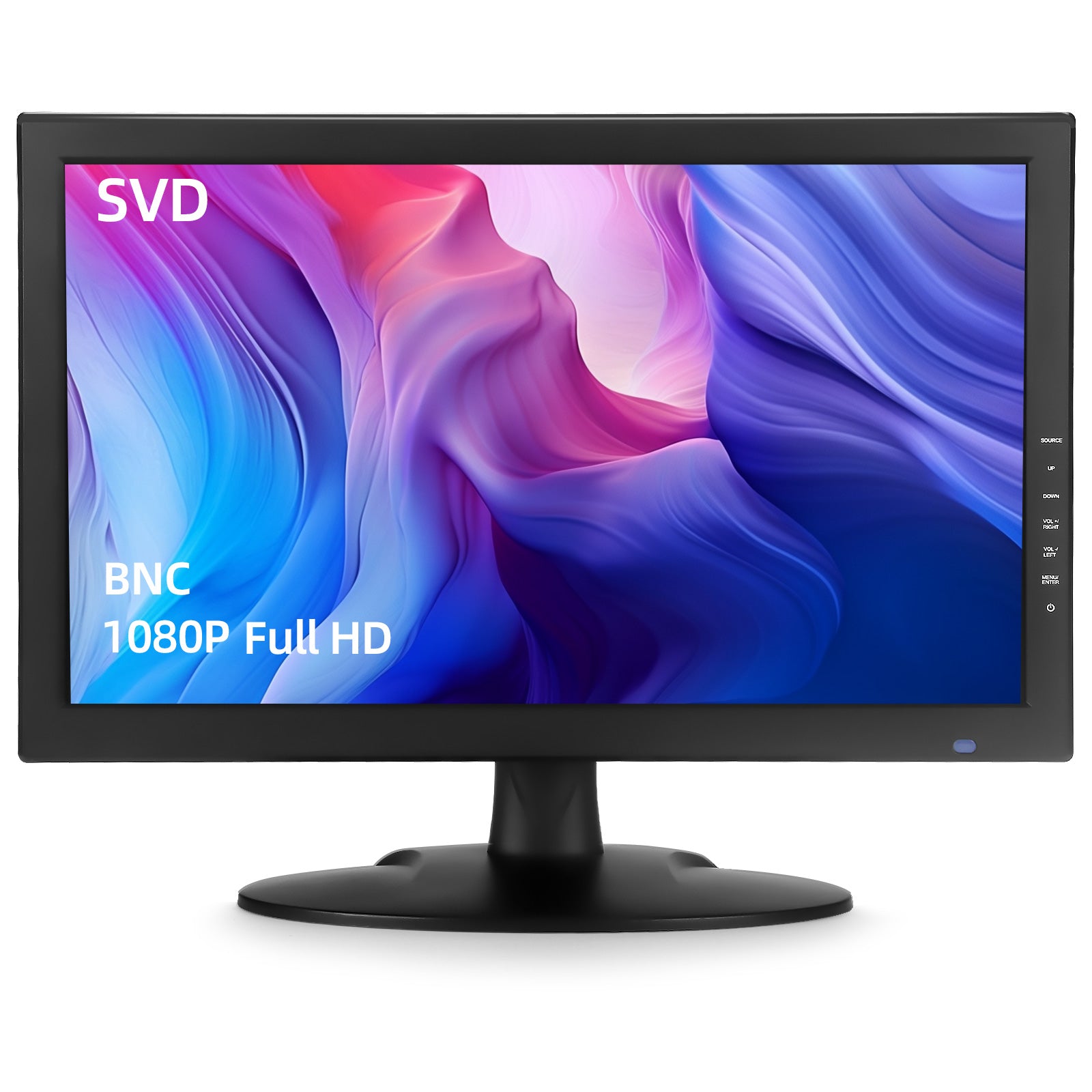

18.5 Inch Professional Security Monitor - BNC, HDMI & VGA

18.5 Inch Security Monitor for Compact CCTV Setups

This 18.5-inch professional security monitor is a practical choice for counters, back offices, reception desks, equipment rooms, and small monitoring stations where space is limited but connection flexibility still matters.

Best For

• Small DVR or NVR monitoring stations
• Legacy analog CCTV systems using CVBS/BNC video
• Reception counters, retail desks, server rooms, and utility closets
• Installers who need BNC, HDMI, and VGA on one compact display

BNC, HDMI, and VGA in One Monitor

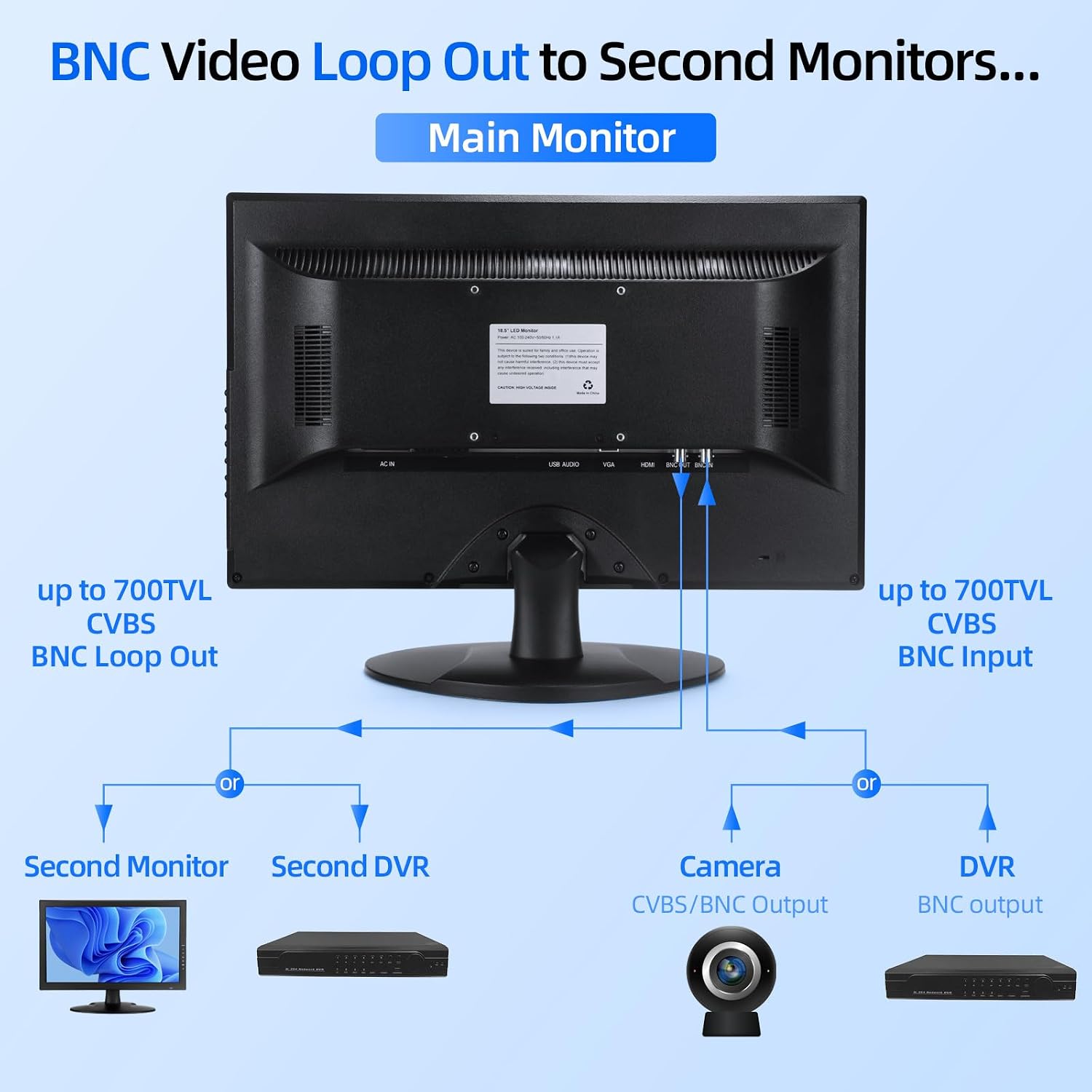

The BNC input supports legacy composite CCTV video, while the BNC loop output can pass the signal to another monitor or recorder. HDMI connects to modern DVRs and NVRs, and VGA supports older PC-based or recorder-based systems.

Built for Security Use

This is not a repurposed TV. It is designed for surveillance environments where the screen may stay on for long shifts or continuous operation. The compact 18.5-inch size keeps live camera viewing available without taking over the workspace.

Key Features

• Screen size: 18.5-inch LED
• Native resolution: 1366 x 768 at 60Hz

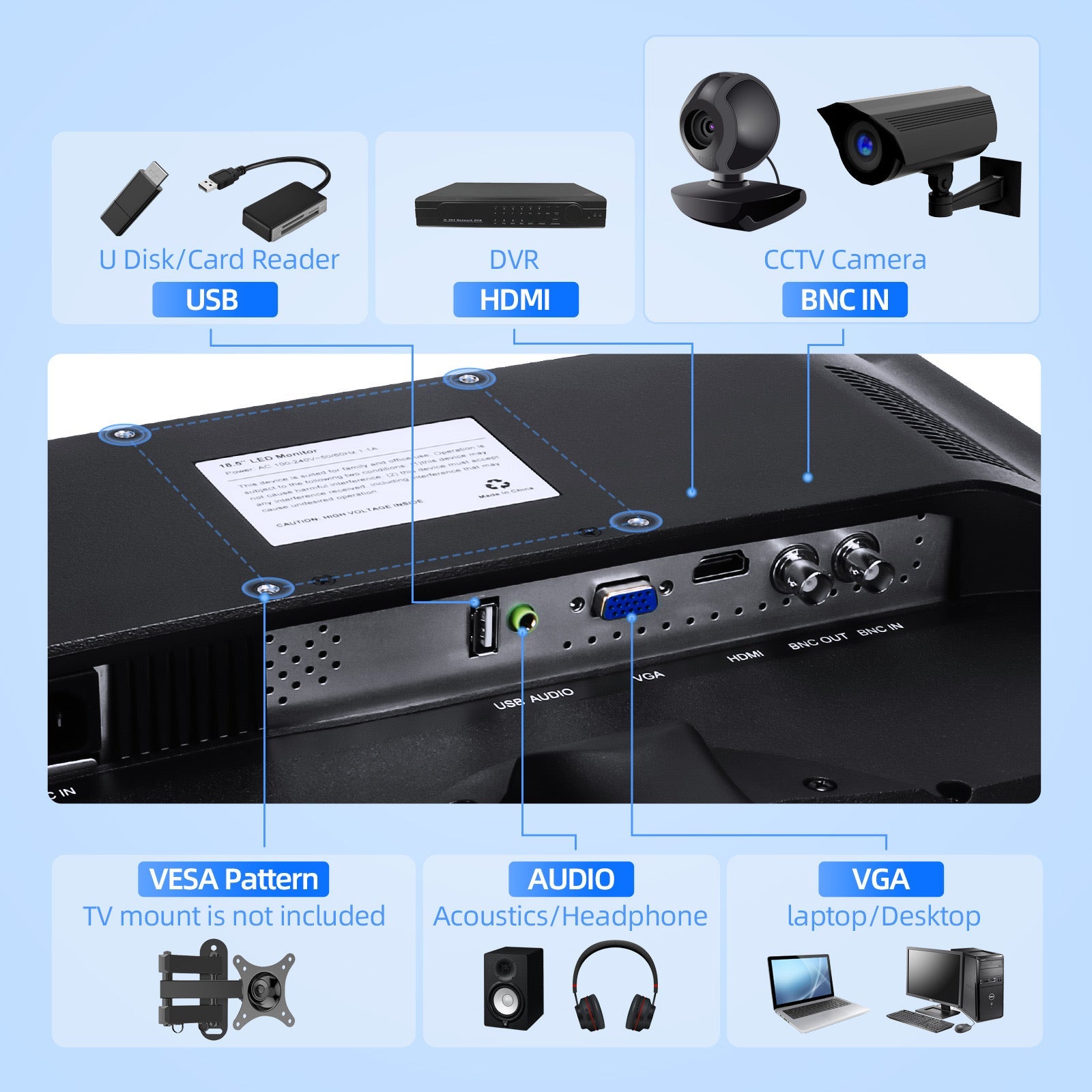

• Inputs: BNC composite, HDMI, VGA, USB, audio
• BNC output: Looping output for pass-through video
• Image processing: 2D comb filter, de-interlace, noise reduction
• Audio: Built-in speakers

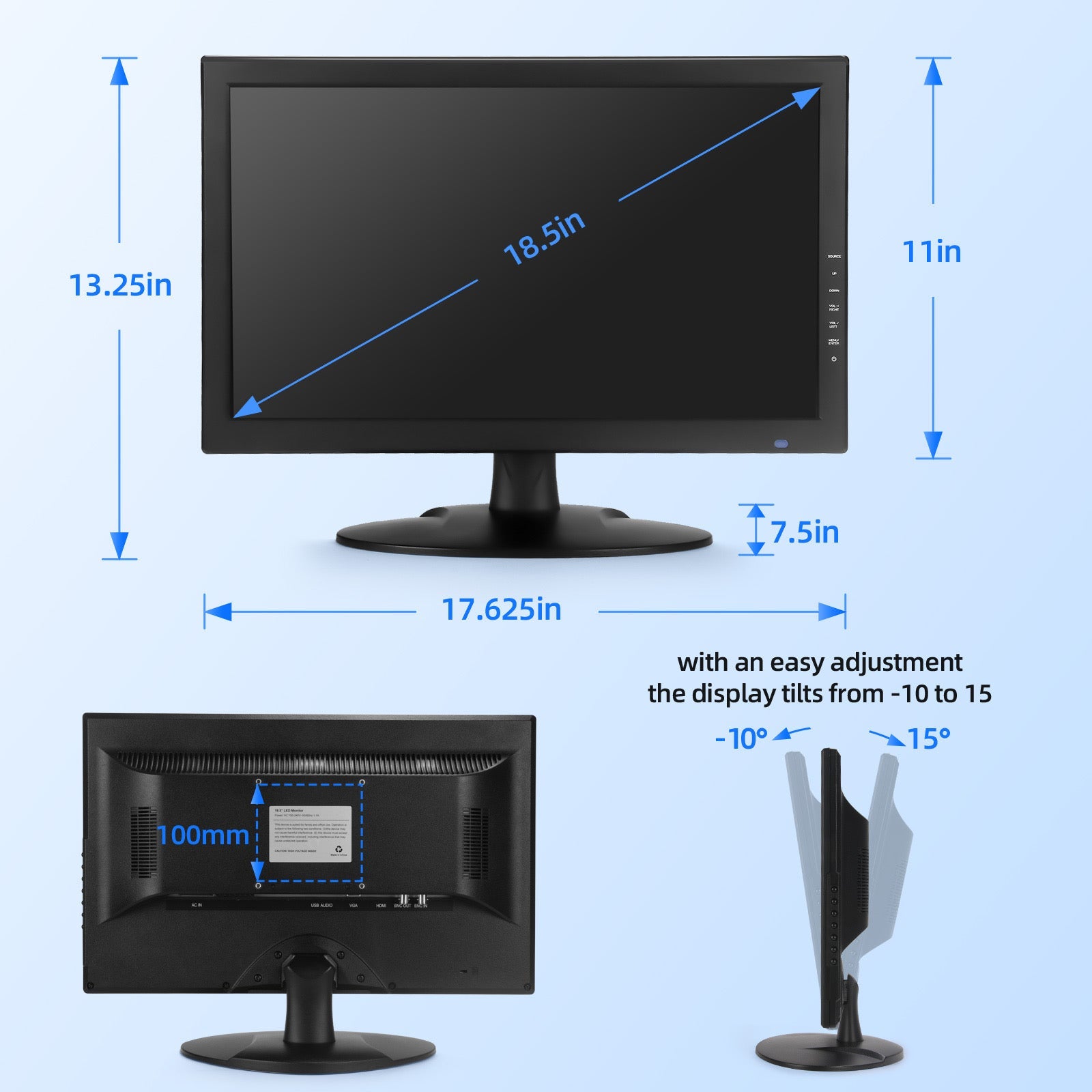

• Mounting: VESA 100 x 100mm
• Use case: DVR, NVR, PC, and analog CCTV monitoring
• Support: California-based SVD support
• Warranty: 1 year

Common Questions

Can I connect an analog BNC camera directly?
Yes, for compatible CVBS/composite BNC video. For HD-over-coax formats such as TVI, AHD, or CVI at higher resolutions, choose one of the SVD 5MP-capable BNC monitor models.

Can I use it with a DVR or NVR?
Yes. Use HDMI for most DVR/NVR outputs, VGA for older systems, or BNC for compatible analog video.
