Features:

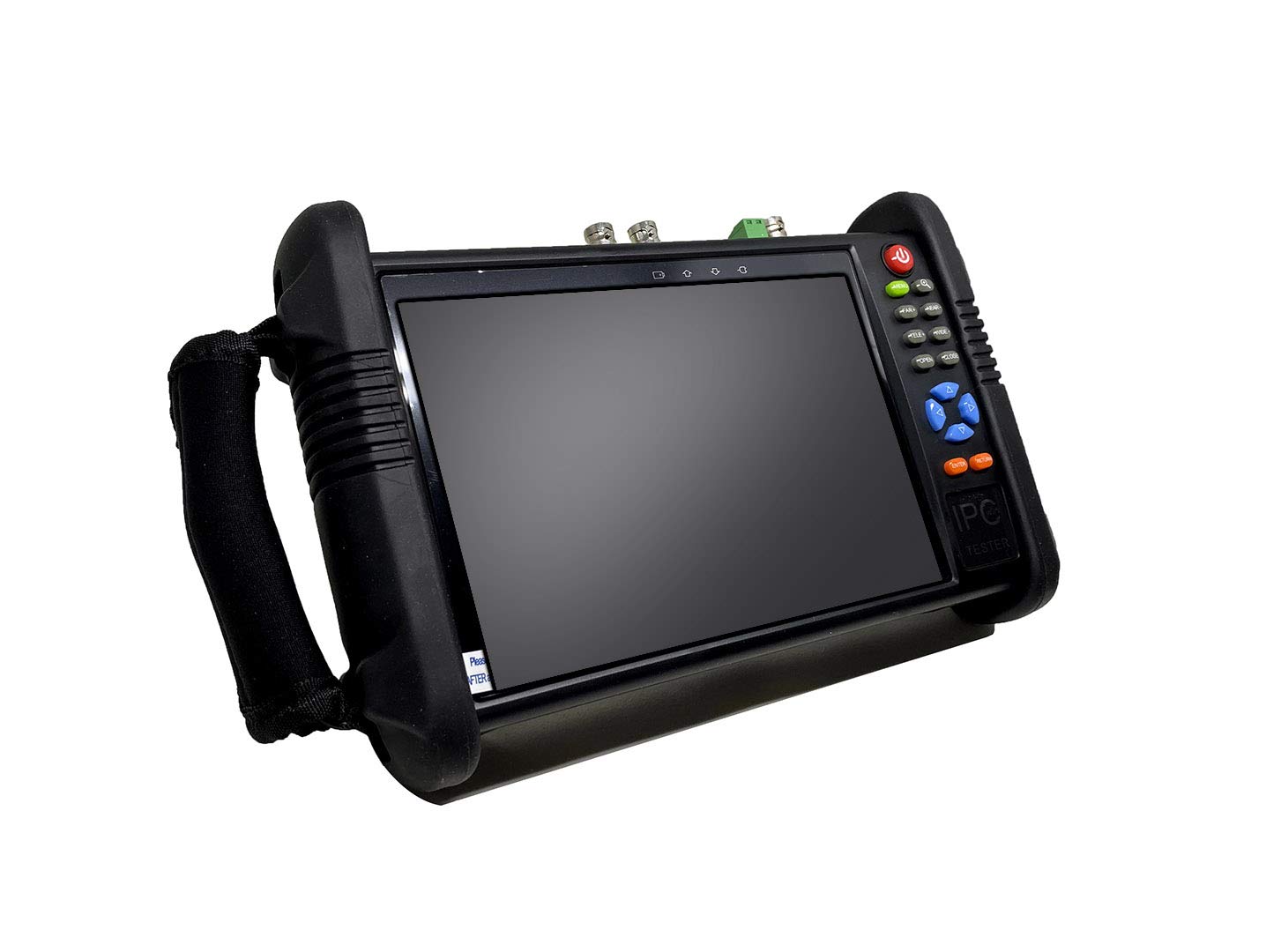

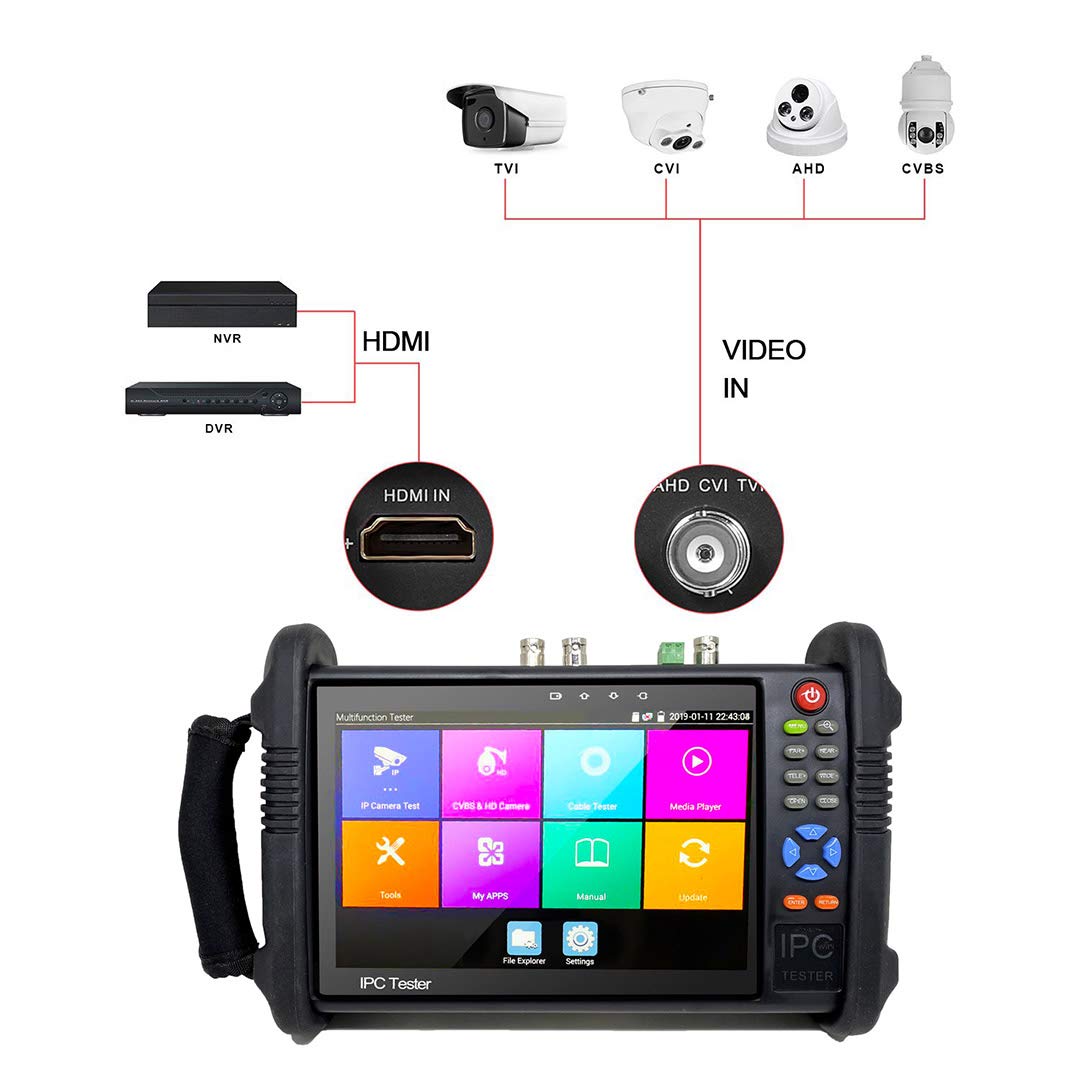

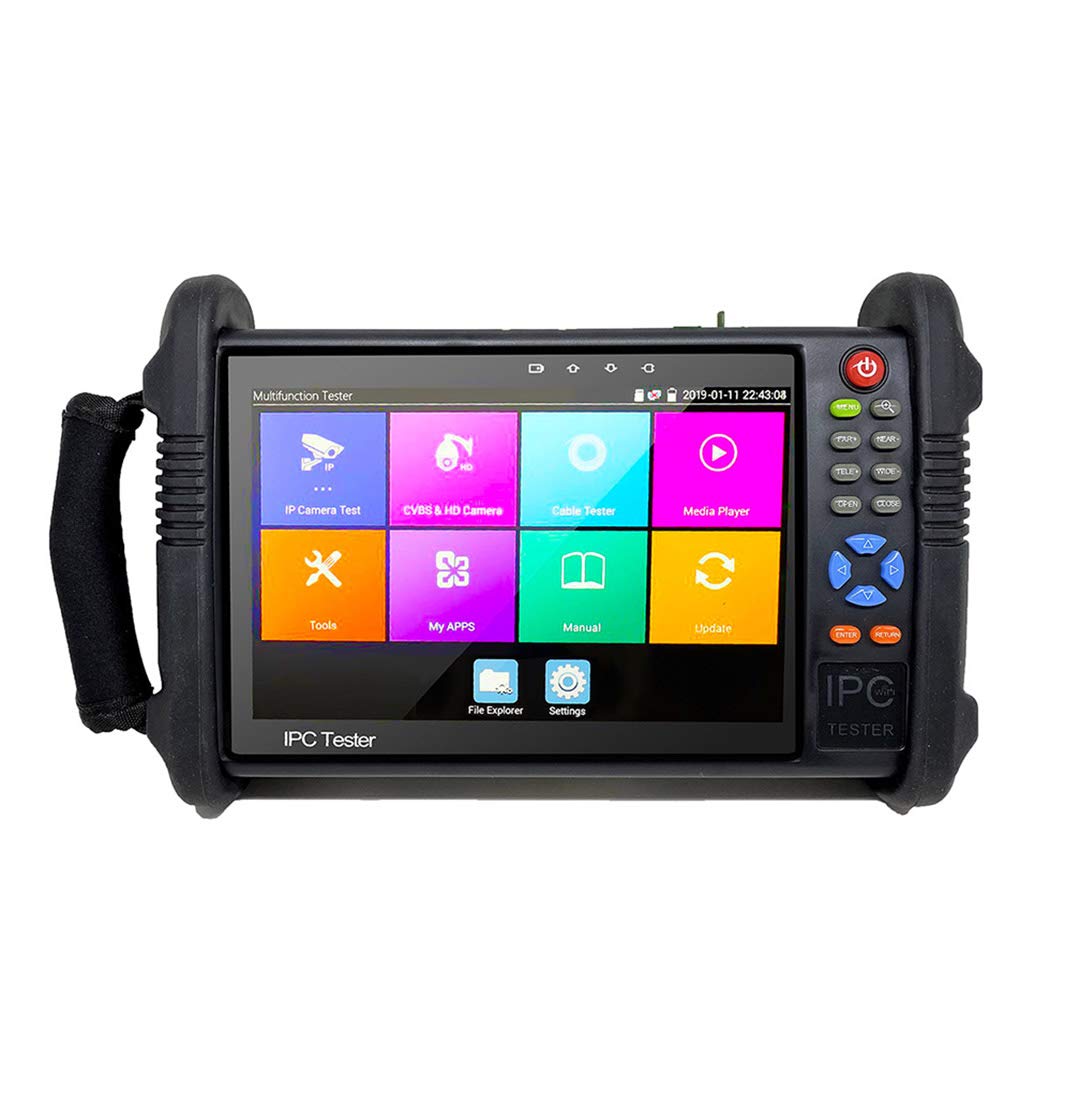

✔ 7 inch 1920*1200 resolution retina display touch screen IP & CVBS & TVI & AHD & CVI & SDI tester.
✔ Compatible with almost all models' IP cameras, such as Hikvision, DaHua, uniview, Hanbon, Samsung.
✔ Support coaxial HD 4.0 8MP TVI/ AHD/ CVI/ EX-SDI camera test, coaxial view control and menu debugging. Support preview, zoom, photograph, play back.
✔ Support TDR cable test. To test cable status, length, attenuation, reflect rate, impedance, time delay deviation etc.
✔ Built-in WIFI, Support wireless WIFI hotspots.10/100M Lan Port, H.265/H.264, 4K video display via mainstream.
✔ PoE DC48V power output, Max power 24W; Support 12V /3A DC power output, 5V/2A power output.
✔ Support ONE SCREEN TWO WINDOWS DISPLAYS. IP camera and analog camera pictures can be shown at the same time.
✔ Support quick screen capture function, press and hold confirm key to get screen shot
✔ BUILT IN IP SCANNING APP, auto-scan the whole network segment IP, and auto-modify tester’s IP address
✔ HDMI signal output 3840*2160P, support 1080p display image, record and snapshot
✔ UTP cable, telephone cable's sequence and connectivity test.
✔ POE/DC12V voltage and power measurement
✔ Lithium Ion Polymer 7.6V/7500mAh Battery, working time lasts 11 hours, Support Smart Charge, Battery charge time 2.5 hours

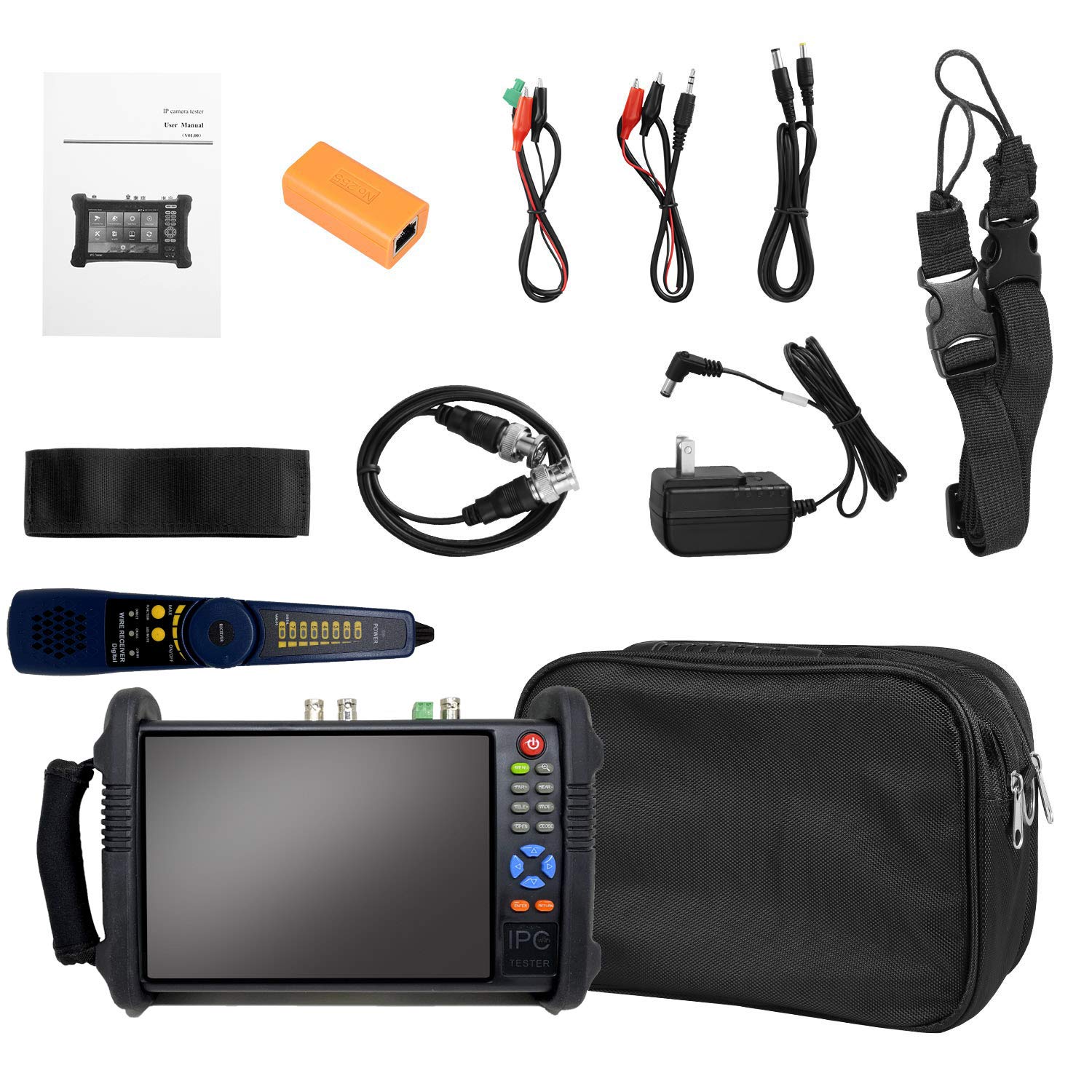

What's in the Box?
1 x IP Camera Tester
1 x Power Output Cable
1 x RS485 Test Cable
1 x Audio Test Cable
1 x BNC Cable
1 x Crocodile Clip BNC Cable

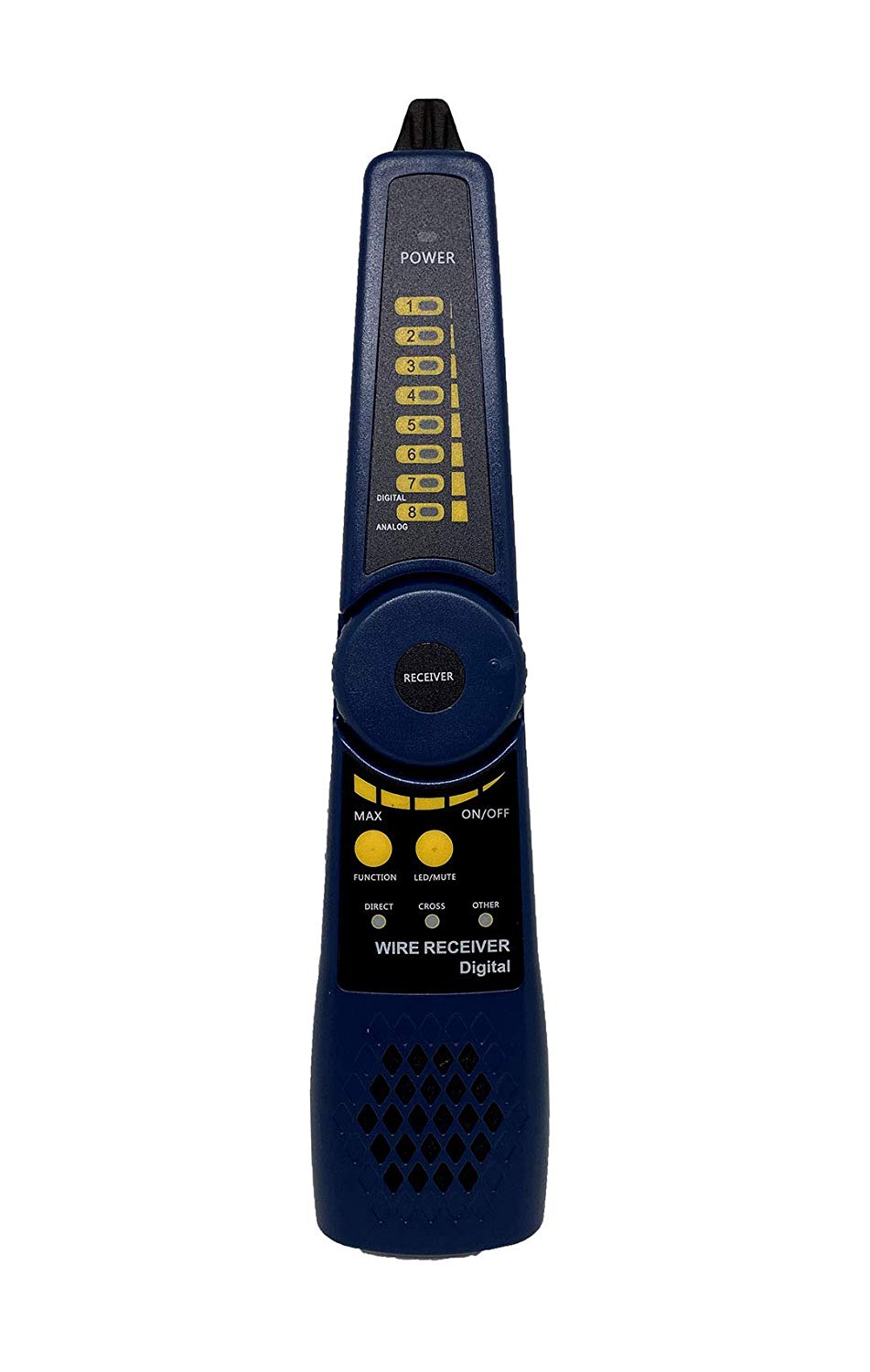

1 x Cable Tracer
1 x Power Adaptor
1 x Screw Driver
3 x Straps
1 x Storage Bag
1 x Built-in English User Manual
